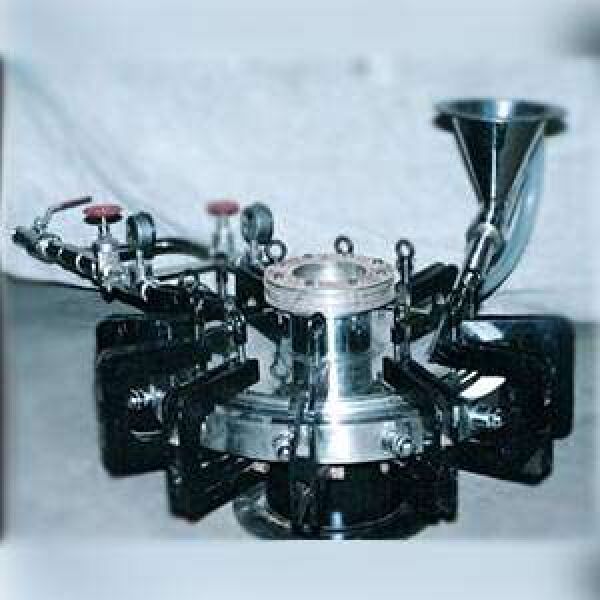

Air Jet Mill Machine

Mechanism:

Jet Mill is our response to meeting industry demands for constant improvement in processing technology. Utilizing a unique fluid energy grinding system to generate particle on particle impact, the Micronize grinds and classify powders to micron and sub-micron size in single operation, in a single grinding chamber. Jet Mills are used to micronize pharmaceuticals, chemical, pigments, minerals, agrochemicals, thermoplastics and other heat sensitive and abrasive materials. Jet Mills operate in compressed air. These mills have no moving parts and thereby eliminating contamination due to contact with external grinding media. Also on attritional heat is generated during grinding process hence suitable for heat sensitive, waxy substances and low melting point materials are easily micronized.

MOC Details:

Main body –SS 304, Top liner- SS 304, Bottom liner SS 304, Top and Bottom Plate-MS, Nozzles-Alloy Steel, Outer ring-SS 304, Plugs- SS 304, Setting Pipe- SS 304, C clamp MS, Stand-MS, Ventury Assembly – SS 304, Air Pipe line – SS 304.

Model Type: 8 Inch to 32 Inch Other Machine required with Jet mill: Air compressor, Air tank, Dryer, Pre Blander, Live Storage Silo, Post Blander, Dust collector (PJDC), Small PJDC for Blander, Electromagnetic Hammer, Reversforward screw, Blower, Rotary Valve etc.

Air Required: 1150 M3 / hr at 7.5 bar Loading
